    Total station fuel dispenser ATG monitor system fuel tank level temperture water sensor diesel tank leak monitor gauge

    Ask Lasest Price
    Brand Name : GUIHE
    Model Number : SYW-A
    Certification : EX ,ISO
    Price : 100-500USD/PIECE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000PIECE/MONTH
    Delivery Time : 3-5 WORK DAYS
    • Product Details
    • Company Profile

    Total station fuel dispenser ATG monitor system fuel tank level temperture water sensor diesel tank leak monitor gauge

    GUIHE Measure the water level and water service measuring instruments messages water tank level gauge

    Product Description

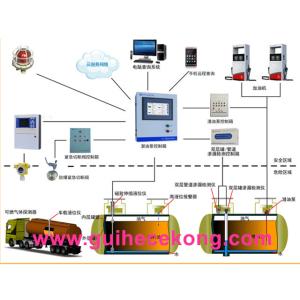

    SYW-A Probe +TCM-1 Touch Control Console + Central Control System + Internet

    1,Industrial design, long service life, fast in running.

    2,Excellent compatibility with different brand Central Control System.

    3,Integrated design for the safety barrier and control console in order to easy installation and lower the cost.

    4,Information are stored in memory for future inquiry.

    5,It enjoys a tank tilt compensation function

    6,It can connect with explosion-proof ringer outdoors avoiding the product spilled

    7,With an embedded printer it can print inventory reports, delivery reports, leak reports and shift reports

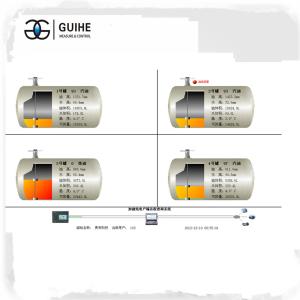

    8,It can monitor up to 12 tanks and display dynamically the product level and water level with colored graphics in proportion.

    9,After connected with Central Control System though internet, it can provide information for manager to manage the inventory, delivery and the sale of the product.


    SYW-A Magnetostrictive Probe


    1,The probe consist of:


    Fully enclosed magnetostrictive probe.


    Electronic Pod using for data measuring and transforming.


    Floater made according to the product.


    2,Features:


    Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC


    Accuracy: level accuracy is ±0.5mm


    Stability: strong anti-jamming ability


    Efficiency: less than 1 second to test one tank.


    3,Probe Performance


    ItemSYW-A
    PurposeTo measure product level, water level and temperature
    Titles of mediumGasoline, diesel, kerosene, ethanol , water etc.
    State of mediumLiquid
    Explosion-proof gradeExiaIIBT4 (Intrinsically safe)
    Pressure range-0.02Mpa~0.6Mpa
    CertificatePCEC Conformity Certificate of Explosion-proof / Permit of Manufacture Measuring Instruments
    Temperature-40~70℃
    Product Level Accuracy±0.5mm
    Water Level Accuracy±0.5mm
    Temperature Accuracy±0.2℃
    Height Resolution0.023mm
    Repeatability±0.1mm
    Environmental Temperature EffectError<0.2mm
    Vibration EffectError<0.5mm
    Lowest Product Inactive Zone2.5'' floater-180mm
    Lowest Water Inactive Zone2.5'' floater-25mm
    Measured VariableProduct level, interface level and temperature of 5 sensors and average temperature
    Probe Length600~3500mm
    Method of CommunicationRS-485
    Probe Material1Cr18Ni9Ti
    Power Supply+24~26VDC
    Protection Class of Probe CanisterIP67
    Max Communication Distance1200m

    Company Information

    Qingdao Guihe Measurement & Control Technology Co.,Ltd is professional manufacuture about Gas station/Oil depot equipment . We have more than 13 Years production experience .

    Our main produce as : gas station ATG/ automatic tank gauge , management system . double wall pipe leakage detector ,double wall tank leakage detector , hose type tanker truck ATG ,Magnetostrictive probe , touch contorl sonsole , Tank Calibration system/machine, high level alarm , gas alarm ,and others .

    we are finding the DISTRIBUTOR in different country , welcome to contact us and talk about it !
